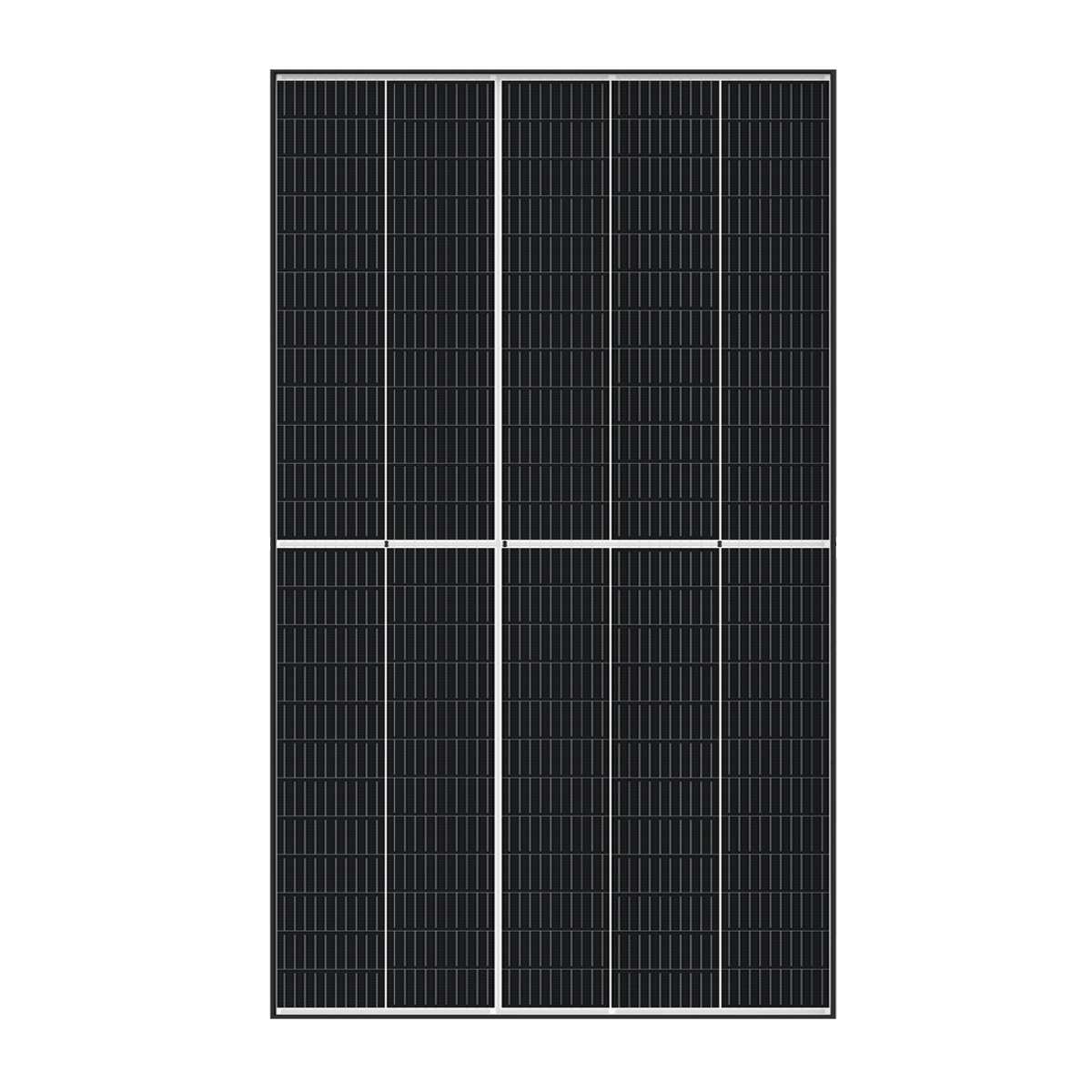

Trina 395 TSM-DE09.08 Vertex S

Vertex S 395 Watt half-cell module, Black Frame

Trina is launching the new Vertex S PV module series. The Vertex S series is the first Trina product to benefit from a 15-year product warranty upon launch. The new high-performance module achieves an output power of up to 395 W in a compact footprint. It features integrated multi-busbar technology for improved light capture, lower series resistance, and improved current collection. High-density cell compression technology also minimizes cell spacing within the module. The Vertex S series is versatile and designed for both residential and commercial applications.

Product advantages

• IEC Certified
• State-of-the-art 210 mm Mono PERC third cells
• Module with its electrical properties can be used like known half-cell modules
• High-density cell connection technology for higher module efficiency
• Multi-busbar technology
• 30 mm frame height, very stable
• Plant design and planning exactly as previously known
• 15-year product warranty on workmanship
• 25-year performance guarantee

Product features Trina 395 TSM-DE09.08 Vertex S

• 395 Wp
• 120 monocrystalline cells (210mm third cells), with an arrangement of 5 x 12 cells per module half
• Efficiency: 20.5%
• Black module frame
• White backsheet
• Dimensions: 1754 × 1096 × 30 mm (HxWxD)
• Weight: 21.0 kg
• Connector: MC4 EVO2/TS4
• Cable length on the module: 1100 mm (Landscape)
• Snow load up to 6,000 Pa
• Wind load up to 4,000 Pa
• Performance temperature coefficient: -0.34%/°C
