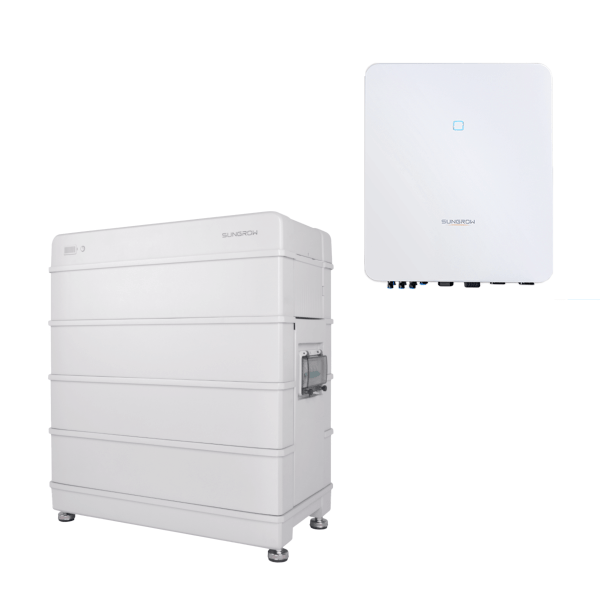

Sungrow SBR128 with Sungrow Hybrid HV SH10RT V112 inverter

Perfectly coordinated: The modularly expandable Sungrow SBR storage with 12.8 kWh - Inverter Sungrow Hybrid HV SH10RT V112

Sungrow inverters achieve up to 99% efficiency with up to two MPPTs. The MPPTs respond to changes in light intensity by selecting the optimal load for the cells to achieve the highest usable output power.

Combined with the Sungrow SBR storage system with 12.8 kWh capacity and the option to expand it at any time, nothing is left to be desired. The Sungrow 3-phase hybrid inverter detects the battery storage system after installation and automatically integrates it into the system. The optimally coordinated battery backup system with state-of-the-art load control and a switchover time of less than 20 ms offers maximum reliability. The entire system is certified according to VDE 2510-50.

This device is configured up to date via the iSolarCloud Assistant and sends its data via the integrated Wi-Fi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. A 3-phase smart meter is included.

Firmware version V112 does not currently support the Sungrow EV charger and the 2CT meter. Mixed systems from versions V11 and V112 should be avoided. A compatibility update is scheduled for release in Q1 2023.

Based on current knowledge, we cannot recommend the combination of Sungrow inverters and optimizers from SolarEdge and Tigo

If PV modules with currents greater than 12.5 A are used, the inverter may slightly reduce its output on a few peak days of the year!

Package benefits

• Elegant and compact design
• Easy and quick installation
• Plug and play storage components and simple cabling
• Emergency power system
• Visualization via free iSolarCloud portal or iSolarCloud app
• Complete system certified according to VDE 2510-50

Product features Sungrow SBR128

• Battery capacity: 12.8 kWh
• Rated voltage: 256 V
• Max. output current: 30 A
• Peak output current: 42 A for 10s
• Weight: 147 kg
• Protection class: IP55
• Dimensions: 625 x 675 x 330 mm
• 10-year product warranty

Product features Sungrow Hybrid HV SH10RT:

• Mains connection: 3 phase
• AC power: 10.0 kVA (10.0 kW nom. / 12 kW 5min. emergency power via separate output
• Reverse polarity protection
• MPP Trackers: 2
• MPPT 1: 1 MC4 input; MPPT 2: 2 MC4 inputs
• Battery connection
• WIFI adapter already included
• Interfaces: Ethernet
• Cable cross-section AC connection 6 - 10 mm² possible
• Cable cross-section DC connection 4 - 6 mm² possible
• 3-phase smart meter Chint DTU 666 80 A included
• Dimensions: 540 x 460 x 170 mm (H x W x D)
• Weight: 27 kg
• Protection class: IP 65
• 10-year product warranty

Scope of delivery

• Sungrow Hybrid HV SH10RT
• 4 x Sungrow SBR 3.20 kWh battery module
• 1 x Sungrow SBR base and accessories
