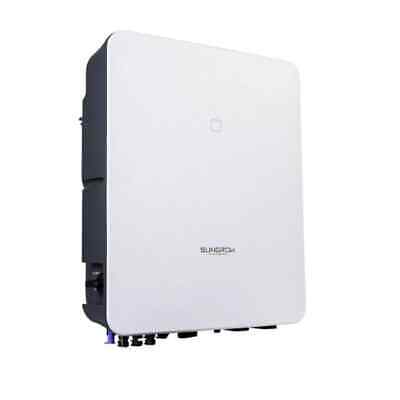

Sungrow Hybrid PV Inverter SH5.0RT: Efficient energy conversion with smart meter

Sungrow Hybrid high-voltage inverter SH5.0RT with emergency power output

These new three-phase hybrid inverter have a three-phase Emergency power output with three-phase current capable of 100% unbalanced load . Together with the High-voltage battery connection and 2 independent MPP trackers The Sungrow inverter leaves nothing to be desired. This device is configured up to date via iSolarCloudAssistent and sends its data via the integrated WiFi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. A 3-phase smart meter is included.

External connections, a generous connection area and an integrated spirit level enable quick installation.

Based on current knowledge, we cannot recommend the combination of Sungrow inverters and optimizers from SolarEdge and Tigo

If PV modules with currents greater than 12.5 A are used, the inverter may slightly reduce its output on a few peak days of the year!

In Austria, please check local registration requirements!

Product advantages

• Input voltage range of 150-950 V
• High efficiency of up to 98.0%
• Natural convection
• AC + DC surge protection 2 integrated
• external connections, no need to open the inverter
• integrated spirit level
• SG-Ready contact available (for controlling e.g. heat pump)
• Noise emission 30dB (A)

Applications:

• Operation without battery as a pure inverter
• DC operation with PV and battery
• AC operation without PV and with battery

Product features Sungrow Hybrid HV SH5.0RT:

• Mains connection: 3 phase
• AC power: 5.0 kVA (5.0 kW nom. / 6.0 kW 5 min. / 10 kW 10 sec.) Emergency power via separate output
• Reverse polarity protection
• MPP Trackers: 2
• 1 MC4 input per MPPT
• Battery connection
• Interfaces: Ethernet
• Cable cross-section AC connection 6 - 10mm² possible
• Cable cross-section DC connection 4 - 6 mm² possible
• Dimensions: 540 x 460 x 170 mm (H x W x D)
• Weight: 27 kg
• Protection class: IP 65

Scope of delivery

• Inverter
• 3-phase smart meter Chint DTSU666 80 A included
• WiNet-S module WIFI adapter
• Wall mount
• Expansion anchor set
• M4 screws and washers
• AC/Backup connector set
• Cable end terminal
• PV connectors
• Crimp contact
• SUNCLIX connector set
• LAN connector
• COM connector
• RS485 cable
• OT connection
• Documents

If you're looking for emergency power, this is the right place! Compact dimensions and low weight with full power—installed faster than any other.
