Sungrow Hybrid PV Inverter SH10RT: Efficient energy conversion with smart meter
Sungrow Hybrid PV Inverter SH10RT: Efficient energy conversion with smart meter
Couldn't load pickup availability
Phases: | 3 |
MPP Tracker: | 2 |
AC power: | 10 kW |
Voltage range: | 200 - 950 volts |
Guarantee: | 10 years |
Communication: | RS485, WiFi, Ethernet |

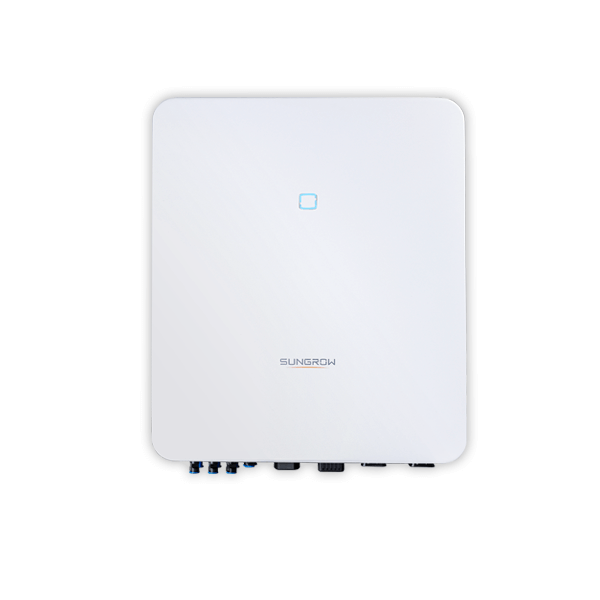

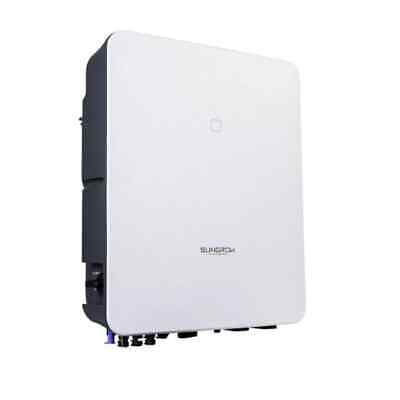

Sungrow Hybrid High-Voltage Inverter with Emergency Power Output SH10RT
These new three-phase hybrid inverters feature a three-phase backup power output with three-phase current capable of 100% unbalanced load compensation. Combined with the high-voltage battery connection and two independent MPP trackers, the Sungrow inverter leaves nothing to be desired. This device is configured up-to-date via the iSolarCloud Assistant and sends its data via the integrated Wi-Fi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. A three-phase smart meter is included.
External connections, a generous connection area and an integrated spirit level enable quick installation.
Based on current knowledge, we cannot recommend the combination of Sungrow inverters and optimizers from SolarEdge and Tigo
If PV modules with currents greater than 12.5 A are used, the inverter may slightly reduce its output on a few peak days of the year!
In Austria, please check local registration requirements!
Product advantages
- Input voltage range of 200-950 V
- High efficiency of up to 98.4%
- Natural convection
- AC + DC surge protection 2 integrated

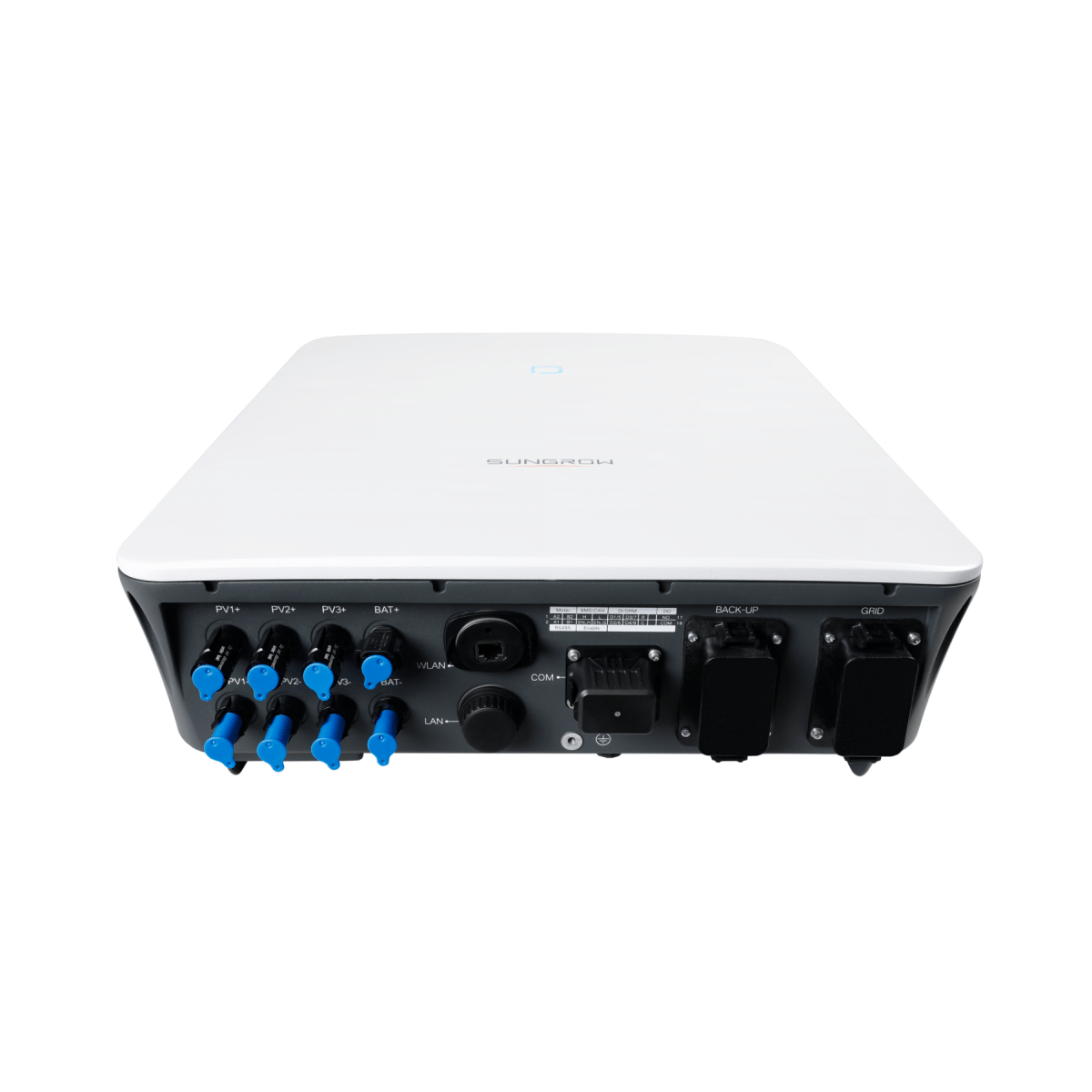

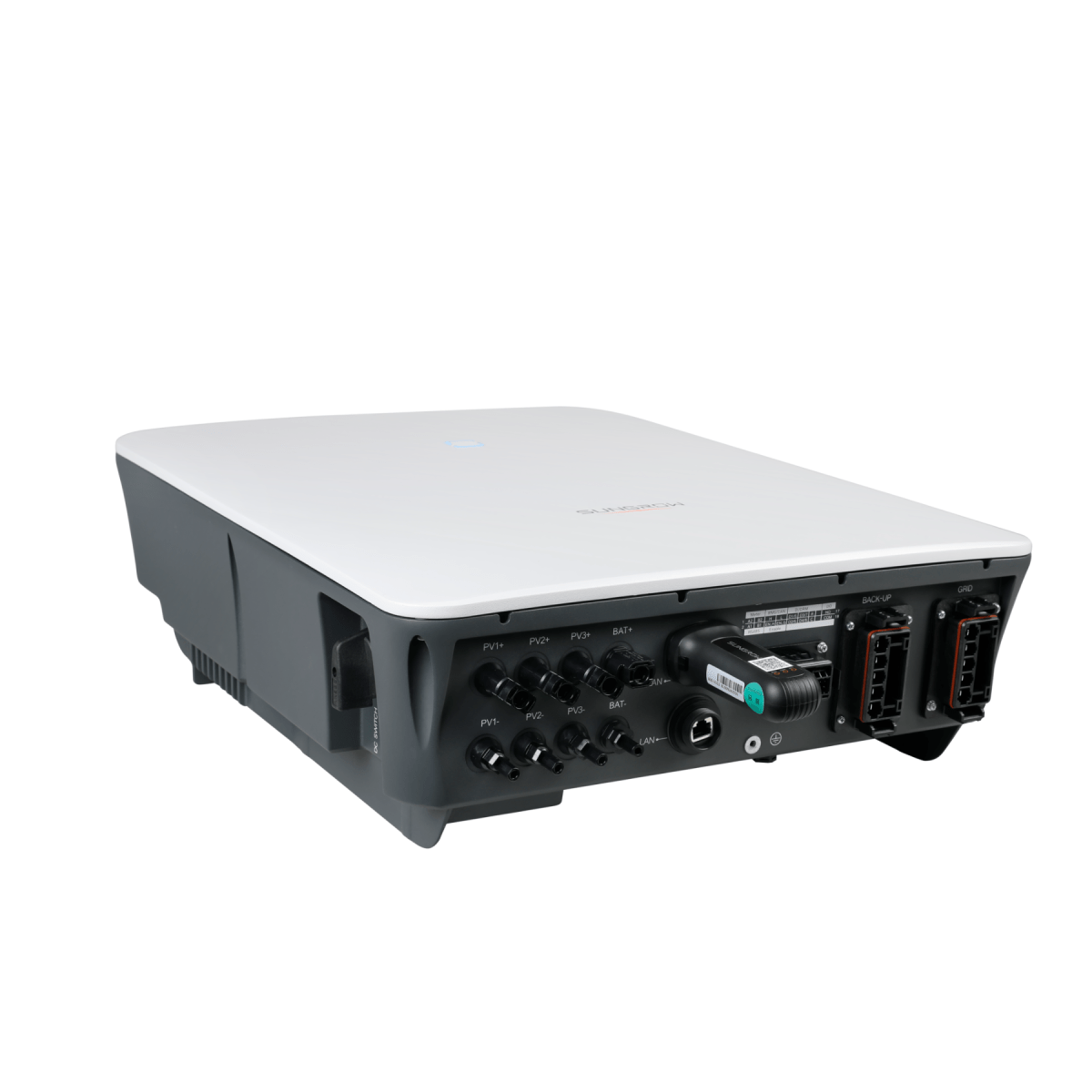

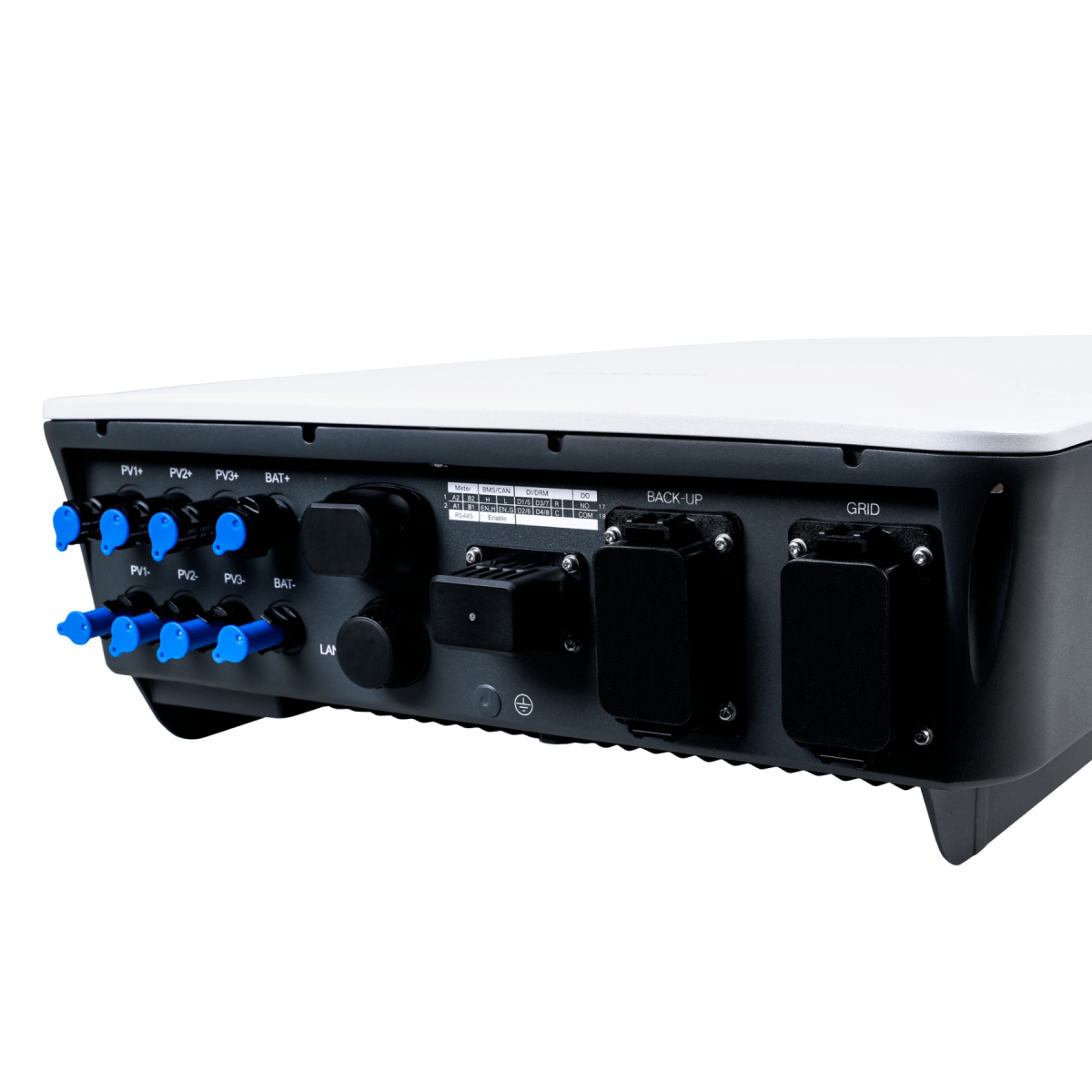

- external connections, no need to open the inverter
- integrated spirit level
- SG-Ready contact available (for: control e.g. heat pump)
- Noise emission 30dB (A)
Applications:
- Operation without battery as a pure inverter
- DC operation with PV and battery
- AC operation without PV and with battery
Product features Sungrow Hybrid HV SH10RT:
- Mains connection: 3 phase
- AC power: 10.0 kVA (10.0 kW nom. / 12 kW 5min. emergency power via separate output
- Reverse polarity protection
- MPP Trackers: 2
- MPPT 1: 1 MC4 input; MPPT 2: 2 MC4 inputs
- Battery connection
- Interfaces: Ethernet
- Cable cross-section AC connection 6 - 10 mm² possible
- Cable cross-section DC connection 4 - 6 mm² possible
- Dimensions: 540 x 460 x 170 mm (H x W x D)
- Weight: 27 kg
- Protection class: IP 65

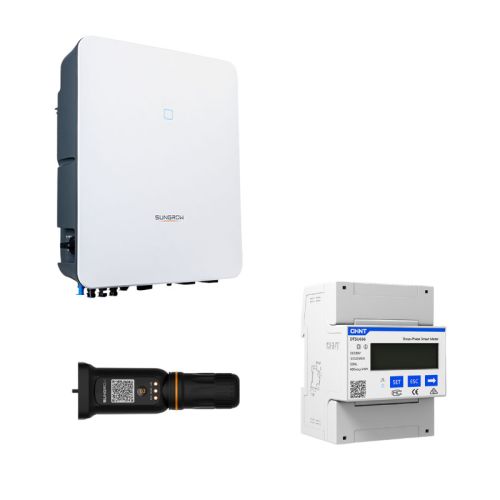

Scope of delivery
- Inverter

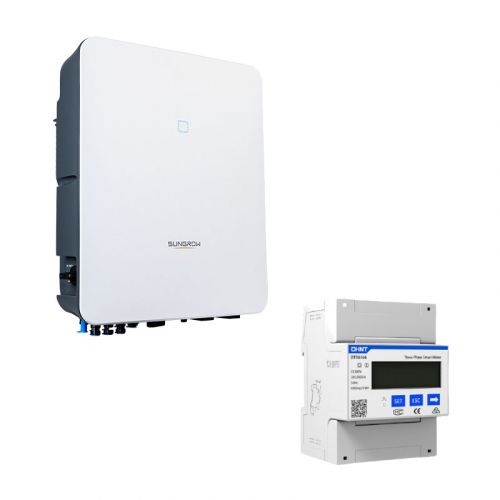

- 3-phase smart meter Chint DTSU666 80 A included
- WiNet-S module WIFI adapter
- Wall mount
- Expansion anchor set
- M4 screws and washers
- AC/Backup connector set
- Cable end terminal
- PV connectors
- Crimp contact
- SUNCLIX connector set
- LAN connector
- COM connector
- RS485 cable
- OT connection
- Documents
Battery compatibility
If you're looking for emergency power, this is the right place! Compact dimensions and low weight with full power—installed faster than any other.
