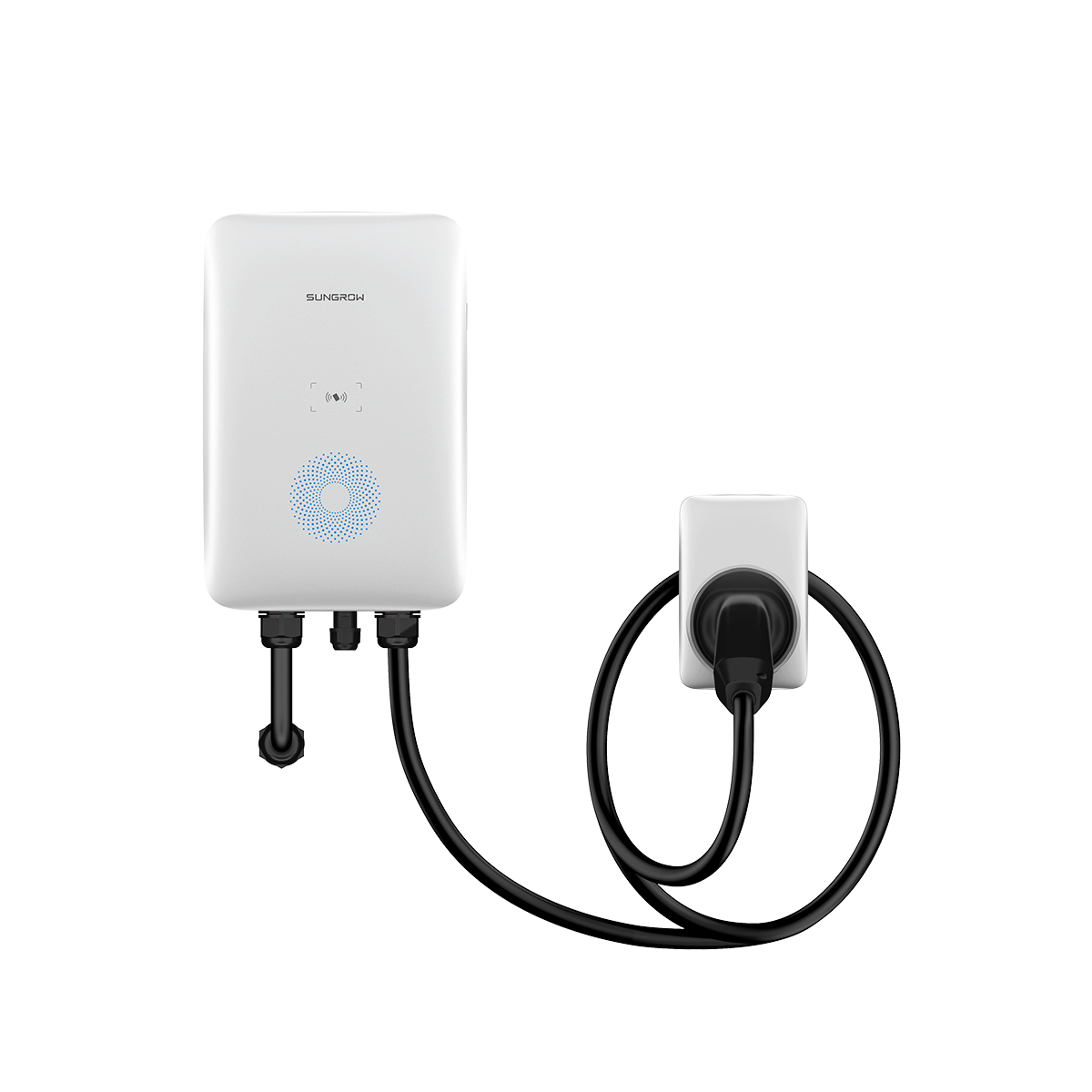

Sungrow EV Charger 11 kW

The 11 kW Sungrow EV Charger as a perfect complement to the 3-phase solution

Integration into the Sungrow monitoring system is only possible in combination with the Sungrow hybrid inverter! Otherwise, the wallbox can also be installed as a standalone solution.

PV surplus with software update expected from Q3/2022

Everything from a single source is now the motto at Sungrow. To complement the 3-phase hybrid inverter and battery, Sungrow is presenting the EV Charger.

With max. 11 kW Charging power and the possibility PV surplus The EV Charger from Sungrow can be ideally complemented to any Sungrow hybrid PV system.

But the EV Charger can also be used without a PV system.

4 different charging modes:

• Green Power Charging - For the most economical charging: Maximizes self-consumption by increasing the charging power when PV power is available. If no PV power is available, the minimum charging current of 6 A is drawn from the grid.
• Preset Charging - ensures that the vehicle is ready at the desired time with the desired capacity, but with as much renewable energy as possible.
• Custom Charging - Time period during which charging is permitted. For example, charging only works between 10 a.m. and 4 p.m., even if the vehicle is plugged in beforehand.
• Fast Charging - Maximum speed: Charging with 11 kW AC power, whether from renewable energy or from the grid.

Product advantages of the Sungrow EV Charger 11 kW:

• everything from one source -> one contact person and perfect coordination of the devices
• 1-person installation possible
• Remote commissioning
• Monitoring via the iSolarCloud
• Wall and stand mounting possible
• Unlock via RFID card
• 5-year warranty

Product features:

• 11 kW max. charging power
• 7 m cable length
• Type 2 plug
• Type 2 ÜSS
• 3.8 kg weight
• IP65
• Communication: RS485/WLAN
• 290x570x225 mm (W*H*D)
• 2x RFID cards are included
