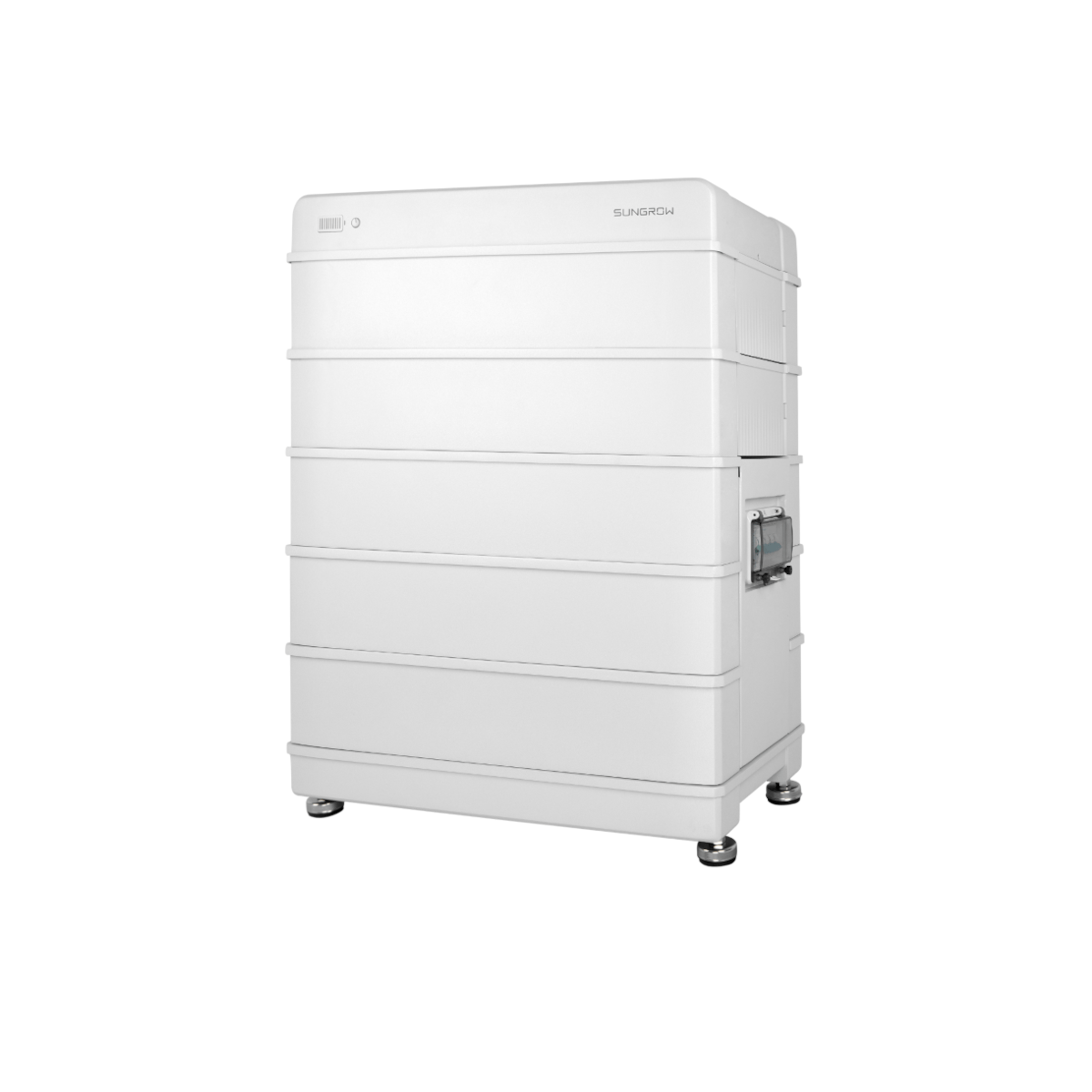

Sungrow SBR160 battery

Sungrow SBR160 high-voltage lithium iron phosphate battery

The Sungrow SBR battery storage system is an extremely flexible energy storage solution for solar systems. The system starts with 5 modules but can be expanded to up to 8 modules, offering modular capacity expansion from 16 kWh to 25.6 kWh. Furthermore, up to 4 units can be operated in parallel to cover a capacity range of 9-100 kWh.

The low weight of only 33 kg per module and the slim design make the Sungrow SBR battery storage a simple plug-and-play installation that can be carried out by one person.

The Sungrow 3-phase hybrid inverter automatically detects the battery storage system after installation and seamlessly integrates it into the system. The system provides an optimally coordinated backup power system with state-of-the-art load control and a transfer time of less than 20 ms to ensure maximum reliability. With the Sungrow SBR battery storage system, solar system owners can efficiently manage their energy consumption and become less dependent on conventional power suppliers.

Product advantages

• Permanent 30 A charging and discharging current possible
• Expandable over the entire lifetime to up to 8 modules per unit
• Up to 4 units can be connected in parallel for a capacity range between 9-100 kWh
• Certified multi-stage protection concept including VDE 2510-50
• Due to its low weight and compact design, installation by only 1 person is possible
• Plug and play between the individual battery modules
• Powerful emergency/backup power and off-grid functionality
• 10-year product warranty

Product features Sungrow SBR160 storage with 16 kWh

• Battery capacity: 16 kWh
• Rated voltage: 320 V
• Max. output current: 30 A
• Peak output current: 42 A for 10s
• Weight: 180 kg
• Protection class: IP55
• Dimensions: 625 x 805 x 330 mm

Scope of delivery:

• 5 x Sungrow SBR 3.20 kWh battery module
• 1 x Sungrow SBR base and accessories
