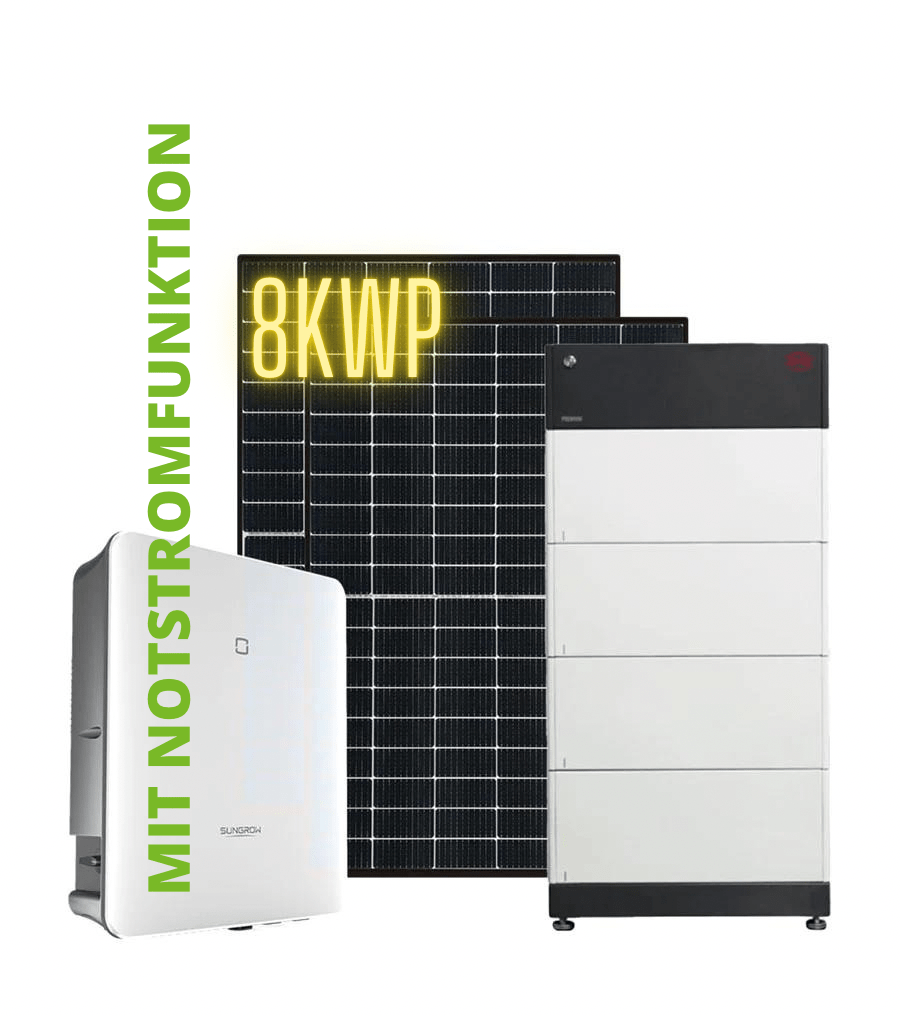

Complete system Sungrow & BYD with 8.0 kWp & 7.7 kWh storage

Complete system from Sungrow, BYD and Eging with 8.0 kWp & 7.7 kWh storage

NRW Solar systems are complete packages, from the module to the inverter, so you don't have to worry about the design and the required components. The included photovoltaic modules reliably produce clean electricity. The high-voltage storage system from BYD provides a secure energy supply even in the event of a power outage until the battery is depleted and is easy to expand. DC surge protection and other installation materials are also included.

Only the substructure is not included in the package. You can purchase the appropriate substructure upon request display free of charge.

Advantages of the 8.0 kWp & 7.7 kWh total system

• Flexible PV system with 8.0 kWp and 2 MPP trackers
• High-voltage battery with 7.7 kWh usable capacity
• Easily expandable storage capacity up to 10.2 kWh with two BYD additional modules
• Sungrow PV Point: 230 V emergency power connection on the inverter
• The package includes all components for the DC cabling
• Easy and quick installation thanks to complete system
• Ideally compatible with the Myenergi wallboxes
• Danger: The maximum battery charge/discharge capacity may be limited depending on the battery size.

Module design of the 8.0 kWp & 7.7 kWh total system

• Standard design with 2 strings
• Recommended module connection per string: 8 - 18 modules in series
• Maximum permissible generator power: 9 kWp

Scope of delivery

• 20 pcs. PV modules: EGing 400W, EG-M54-HLV
• Hybrid inverter: Sungrow Hybrid HV SH8.0RT

• Battery: BYD BATTERY BOX PREMIUM HVS 7.7
• DC Surge Protection: Phoenix Contact DC Surge Protection, Type II, 2 MPP, Terminals
• 100 m solar cable: HIS Hikra black, 6.0 mm²

• 50m protective conductor copper 16mm including 8 cable lugs
• 4 pcs. plug & socket: MC4 Type 4, 4-6 mm², OD 5.9-8.8 mm

Do you need more PV modules or a larger storage system?

No problem! With the suitable solar modules or the suitable memory modules The system can be easily expanded. Please note the maximum system sizes. Reducing or removing items included in the package is not possible.
