Growatt SPH5000TL3-BH-UP 5kW Hybrid Inverter 3-phase including Smart Meter TPM-E 3-phase

• EAN: 4250889677503
• Weight: 35 kg

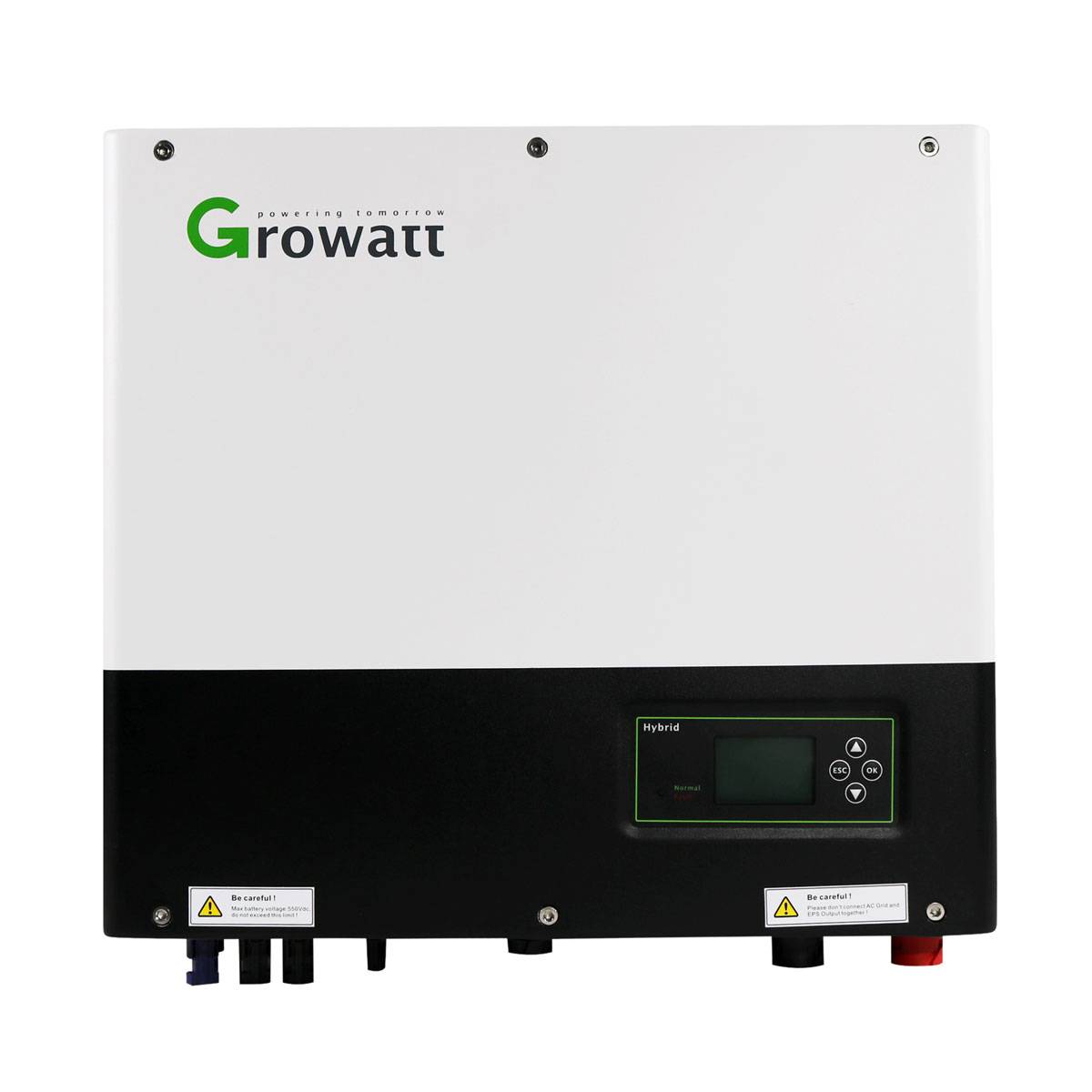

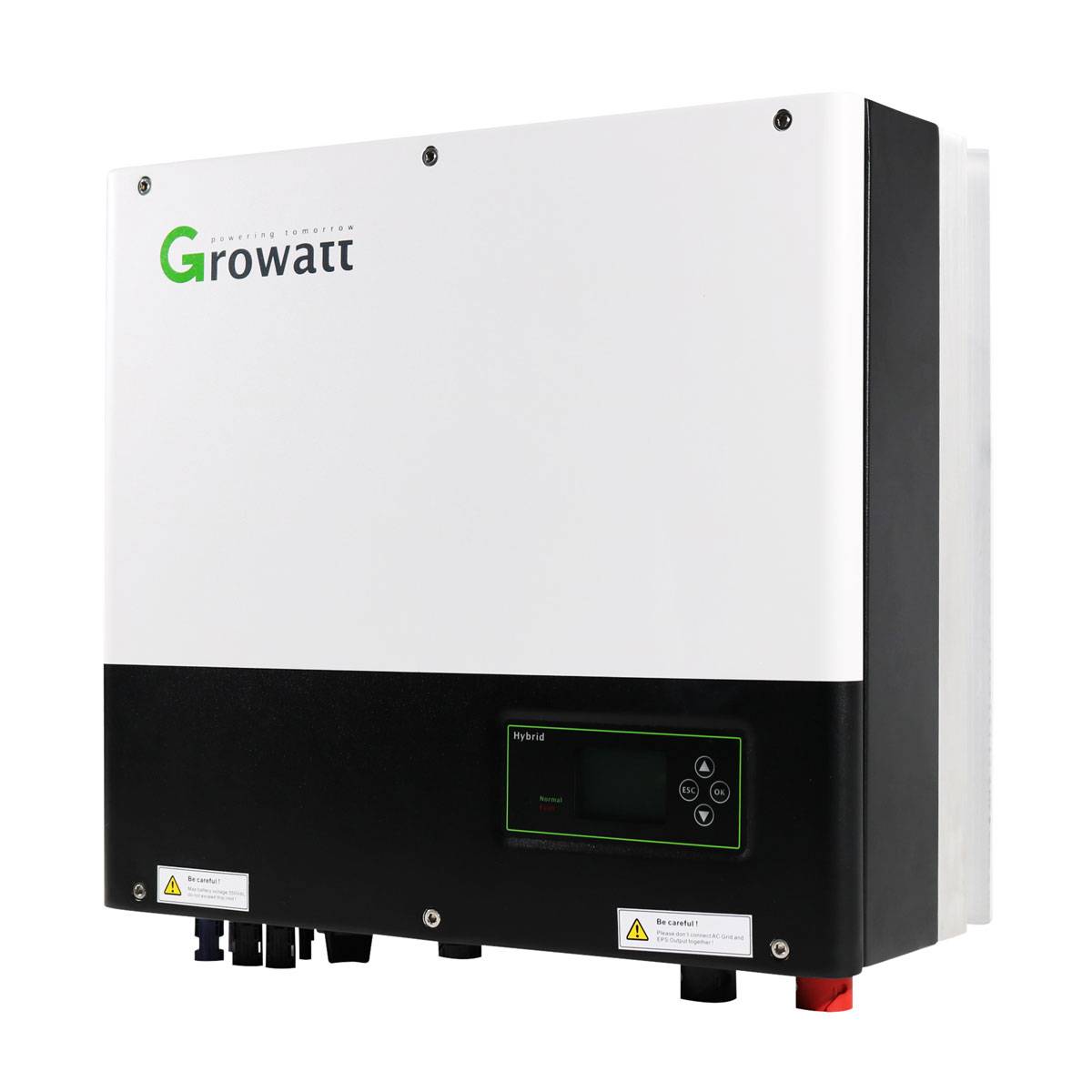

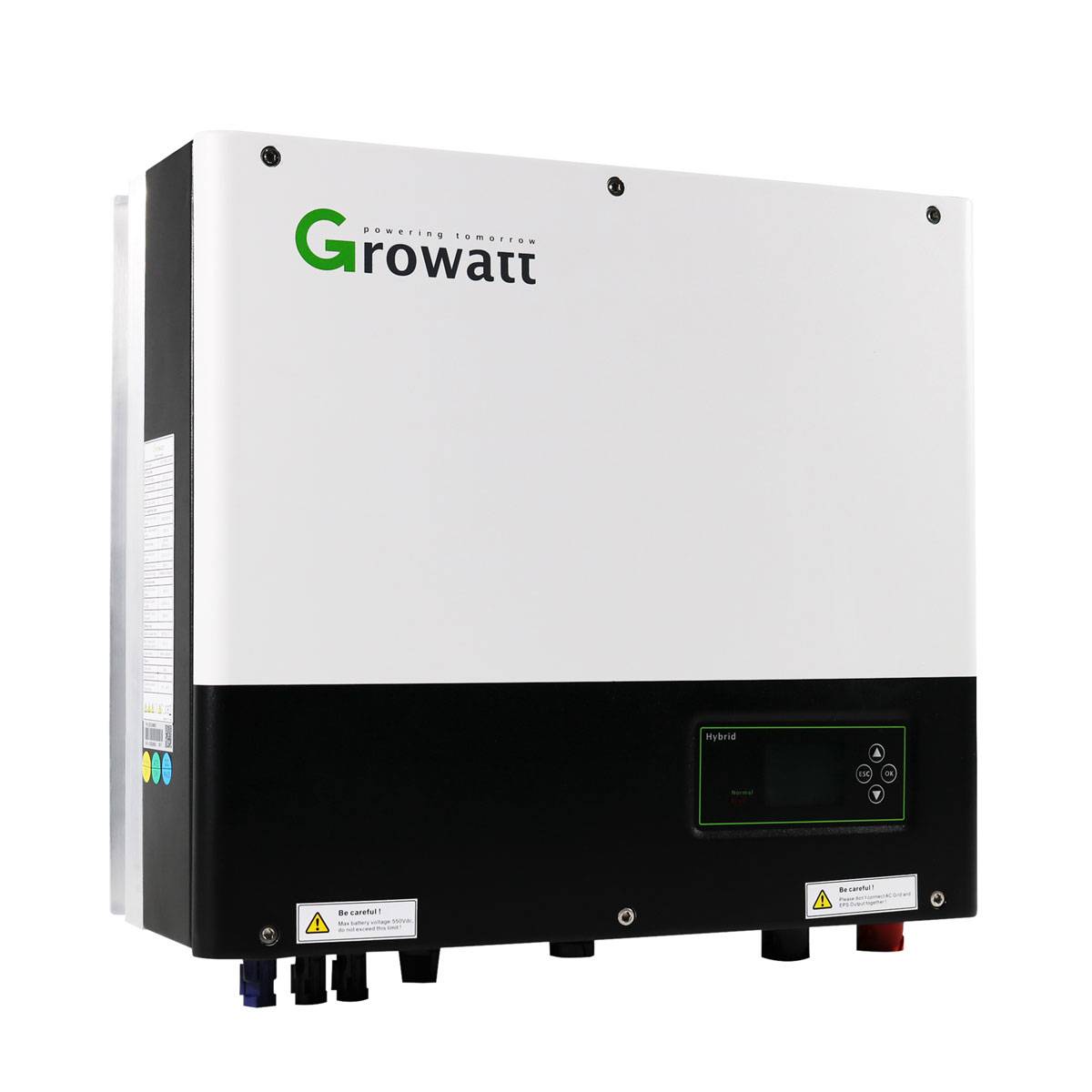

Growatt SPH5000TL3-BH-UP 5kW 3-phase hybrid inverter with TPM-E smart meter

The Growatt SPH 5000TL3 BH-UP is a three-phase hybrid inverter that works in combination with a rechargeable solar battery. This allows you to maximize your self-consumption of solar power and thus become more independent.

Features at a glance:

• Maximum performance: The inverter achieves a peak output power of 5kW and is suitable for systems up to 7.5kWp.

• Efficiency: It boasts an impressive maximum efficiency of 97.8%. Taking typical European weather conditions into account, the efficiency is 97.2%.

• Fast switching: With an impressive switching time of only 10ms, the inverter ensures temporary power supply in the event of a power failure.

• MPP tracker: The maximum performance is optimized by 2 MPP trackers.

• Smart meter included: This model comes with a 3-phase smart meter, so you're ready to go right away.

• Black start function: In the event of a power failure, the inverter ensures that selected phases or devices continue to be supplied with energy from the PV system or the connected storage system.

Communication interfaces:

The SPH 5000TL3 BH-UP offers various interfaces for networked communication:

• RS485
• CAN
• USB
• Optional WLAN (additional module Growatt ShineWiFi-X required)

Technical details:

• Weight: 35kg
• Technology: Hybrid inverter
• Phases: 3
• MPPT number: 2
• Power: 5kW
• Efficiency: 97.2%
• Switching time: 10ms
• Dimensions: 505mm x 198mm x 453mm (L x W x H)

With the Growatt SPH5000TL3-BH-UP you are investing in an advanced and reliable system for your energy independence.
