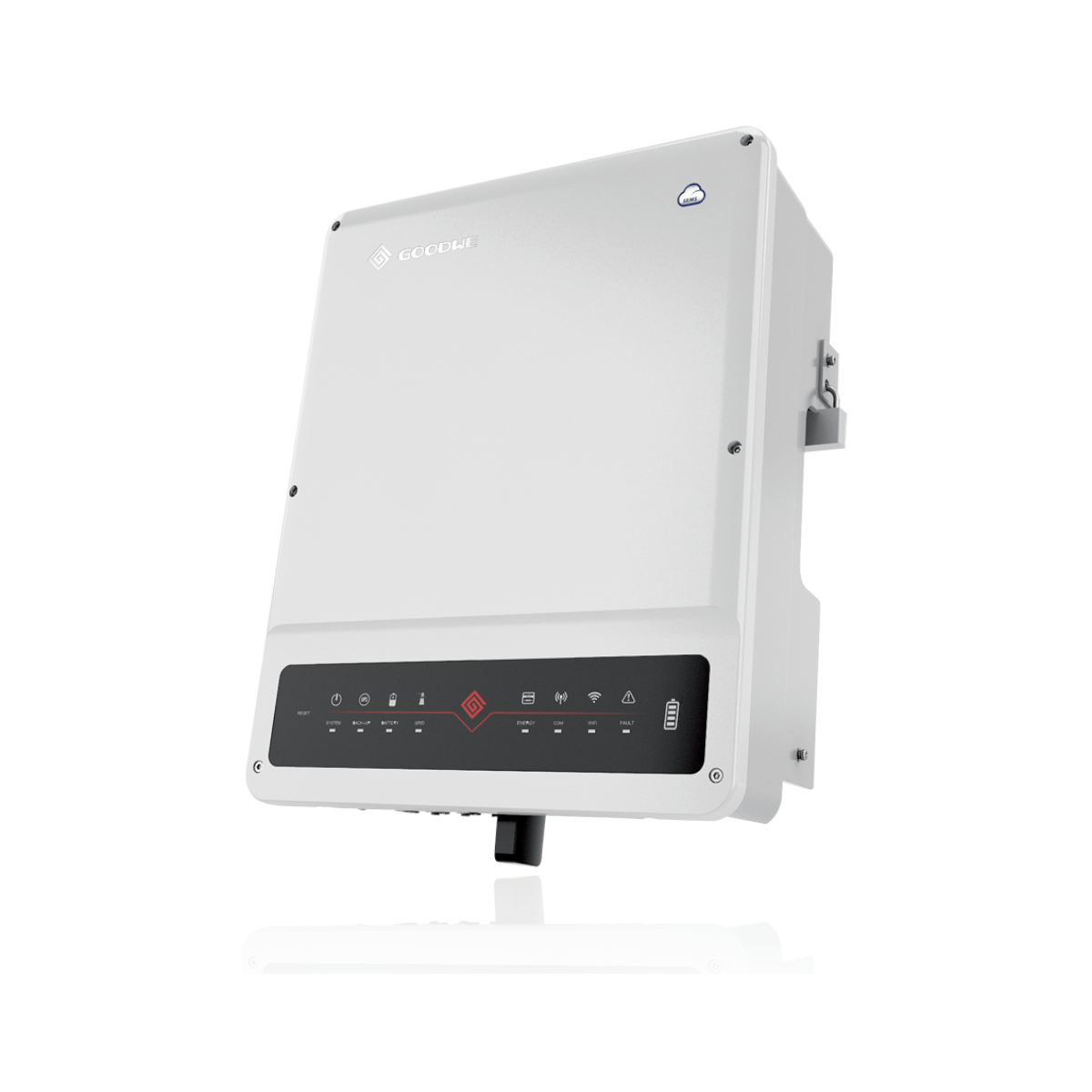

GoodWe ET Plus - GW8K-ET

GoodWe hybrid high-voltage inverter of the ET Plus series with emergency power output GW8K-ET

The ET Plus series replaces the old ET series.

In Austria, please check local registration requirements!

This three-phase hybrid inverters has a three-phase Emergency power output with three-phase current . Together with the High-voltage battery connection and 2 independent MPP trackers The GoodWe inverter leaves nothing to be desired. This device is kept up to date via GoodWe PV Master App configured and sends its data via the integrated WiFi Interface to the free GoodWe SEMS portal. Included in delivery A three-phase smart meter with split-core current transformers is already installed. Larger system design is possible through cascade operation of multiple ET devices.

Product advantages

• Status LED
• AC charging capable, expandable via the SDT G2 series
• High efficiency of up to 98.2%
• DC ÜSS Type 2 integrated
• Direct connection to ripple control receiver
• AC surge protection
• Cascade operation of several ET devices with the SEC1000S Hybrid Combinerbox accessory (Memodo 4407) is possible!

Product features GoodWe GW8K-ET

• Mains connection: 3 phase
• AC power: 8.0 kVA
• 8.0 kW emergency power output via separate output
• MPP Trackers: 2
• String connections per MPPT: 1
• Battery connection for high-voltage battery (BYD, GoodWe)
• RS485, WLAN (optional LAN)
• Potential-free contact available (programmable via PV-Master APP) (SG-Ready)
• Push-in terminals for the communication interfaces simplify installation
• 3-phase smart meter included
• Dimensions: 516 x 415 x 180 mm (HxWxD)
• Protection class: IP66
• Weight: 24 kg

If you're looking for emergency power, this is the right place! Compact dimensions and low weight with full power—what more could you want?
