AEconversion package for 2 modules

AEconversion Micro-inverter package for 2 modules

The AEconversion micro inverter is designed for use in Balcony modules , Guerrilla PV or Mini-PV systems up to a total output of 600 watts The energy generated by each module is immediately converted into grid-compatible alternating energy. Consumers can be directly connected to the self-generated electricity powered from the socket. Wieland feed-in socket The package includes a suitable connection cable (5m) for standard-compliant connection in your home. This ensures safe and quick installation.

Advantages of AEconversion INV 315-50

• Power up to 300W AC
• Maximum DC voltage: 50 V
• Min/Max Starting voltage: 20V / 50V
• MPP range: 24 V - 40 V
• Maximum short-circuit current of a module: 14 A
• Compatible with modules that have an open circuit voltage below 45 V
• Compliant with the new VDE-4105/2018 standard
• NA protection fully integrated
• Inverter can be integrated behind the module (30 mm high)
• Mounting on the module frame possible (only 0.8 kg weight) thanks to the flexible screwed mounting bracket (rotatable by 90° and 180°, or removable)

Advantages of Wieland feed-in connectors for flush mounting

• Mounting in the wall device box
• Automatic, mechanical locking of the RST connectors when plugging in
• Disconnect the lock using a standard screwdriver
  Touch-protected contacts on plug and socket parts, even when unplugged
• IP44

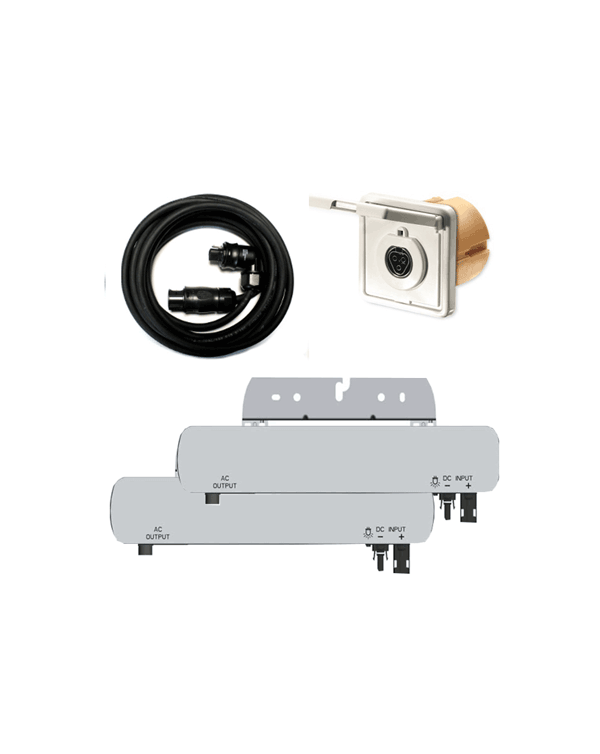

Scope of delivery:

• 2 x AEconversion INV 315-50 inverters
• 1 x Wieland feed-in socket RST
• 1 x 5 m connection cable with Wieland RST20 connector
• 1 x distribution block including bracket
• 2 x 1 m connection cable from WR to distribution block
