10 kW photovoltaic system with Sungrow components, 25x410W Longi Solar solar modules + Sungrow 10kW inverter + Sungrow 9.6kWh storage set for maximum efficiency

Scope of delivery

• 25 x Longi Solar - Mono 410 Black White Half Cut PERC 410W (10,250Watt)
• 1x Sungrow 10kW inverter
• 1x Sungrow 9.6kWh storage set
• 1x WLAN stick 1x Energy Meter
• (10,250 watts)

Opt for a customized and powerful photovoltaic system that provides you with an independent power supply. The kit includes high-quality components from Sungrow, a leading company in the field of solar energy. With 25 Longi Solar solar panels, each with a capacity of 410W and featuring state-of-the-art PERC cell technology and an efficiency of 21.3 percent, you can harvest clean energy from your roof. The SH10RT three-phase hybrid inverter enables flexible installation, and the SBR096 high-voltage lithium iron phosphate battery with 9.6 kWh storage capacity stores excess power for later use.

With the included Wi-Fi module (WiNet-S Communication Dongle) and the DTSU666 three-phase energy meter, you can monitor energy consumption. The set is easy to install and has very low energy consumption, sustainably reducing your energy costs. The battery storage system makes you largely independent of the local electricity provider and allows you to use the generated electricity even on days with little sun or at night.

Generate your own energy and make an effective contribution to protecting the environment. The components of this kit are distinguished by their premium quality, provided by a leading manufacturer. Choose the 10 kW photovoltaic system kit with storage now to create a sustainable energy source in your home.

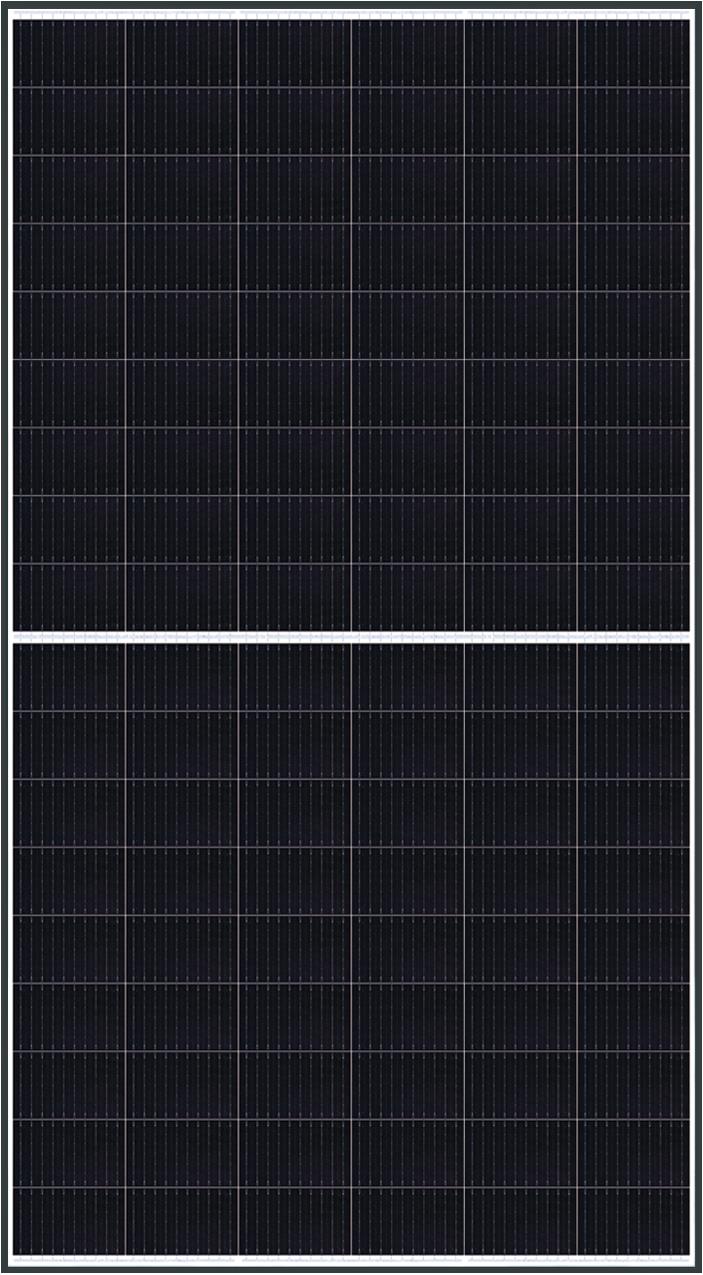

25x solar modules 410W Longi Solar (10,250 watts)

- Generate clean electricity from solar energy

- Excellent performance even at low irradiance

- Durable tempered glass surface

- State-of-the-art PERC cell technology for maximum efficiency

- Robust aluminum frame for optimal stability

Technical data:

- Manufacturer: Longi Solar

- Type: LR5-54HIH-410M

- Categories: Mono

- Power: 410

- Current: 13.12 A

- Voltage: 31.25 V

- Short-circuit current: 13.88 A

- Open circuit voltage: 37.25 V

- System voltage: 1500 V

- Length: 1722 mm

- Width: 1134mm

- Frame height: 30 mm

- Weight: 21.5 kg

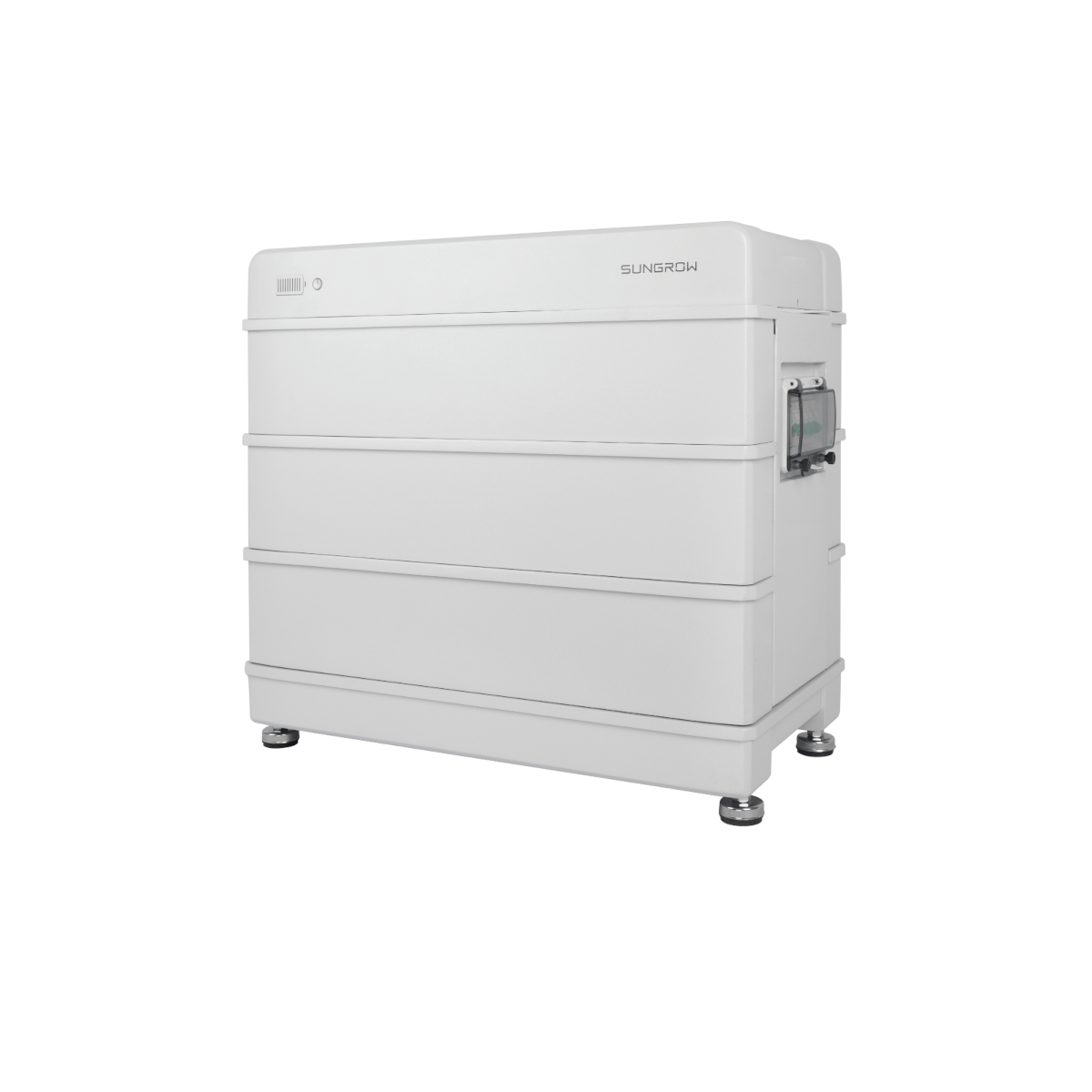

SUNGROW SBR096 HIGH VOLTAGE LITHIUM IRON PHOSPHATE BATTERY 9.6 KWH

Technical data at a glance:

Battery capacity: 9.6 kWh

Rated voltage: 192 V

Output current: 30 A

Peak output current: 42 A for 10s

Weight: 114 kg

Protection class: IP55

Dimensions: 625 x 545 x 330 mm Compatible with Sungrow Hybrid Inverter 3 Ph.: SH5.0RT, SH6.0RT, SH8.0RT, SH10.0RT

3-PHASE ENERGY METER | DTSU666 | LCD SINGLE-SPEED METER

Technical data:

Input: 3 phases

Input current: (max.) 80 A

Input voltage: 230 V at 50 Hz

Operating range: 176~276V AC

Bus type: RS485

Protocol: Modbus-RTU (Modbus™ Word order)

Protection class: IP51 (indoor)

Fire protection: self-extinguishing UL94V-0

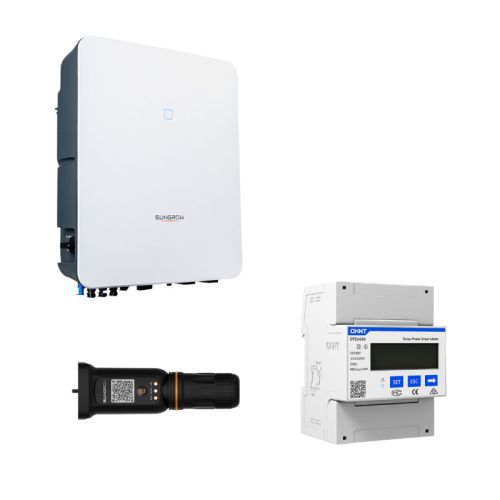

Sungrow Hybrid Inverter SH10RT

Technical data at a glance:

Mains connection: 3 phase

AC output power: 10000 W (10.0 kVA)

DC input power: 15000 W (15.0 kWp)

Input voltage DC: 1000 V

Mpp input voltage: 950 V

Mpp input voltage: 200 V

Emergency power via separate output

Reverse polarity protection

MPP Trackers: 2

1 MC4 input per MPPT

Battery connection

WIFI adapter already included

Interfaces: Ethernet

Cable cross-section AC connection 6 – 10mm² possible

Cable cross-section DC connection 4 – 6 mm² possible

Dimensions: 540 x 460 x 170 mm (H x W x D)

Weight: 27 kg

Protection class: IP 65

Sungrow WiNet-S Communication Dongle

Product features WiNet-S:

• WLAN or Ethernet, flexible system network compatibility, one-click access to the iSolarCloud
• Automatic network configuration with DHCP, transmission without configuration
• Password and encrypted transmission for data protection LED display
• Number of supported devices: 1
• Plug and play, quick installation
• Protection class: IP66
• Dimensions: 132*48×36 mm (HxWxD)

Warranty: 10 years storage and inverter

12-year solar module product warranty

25-year solar module performance guarantee
